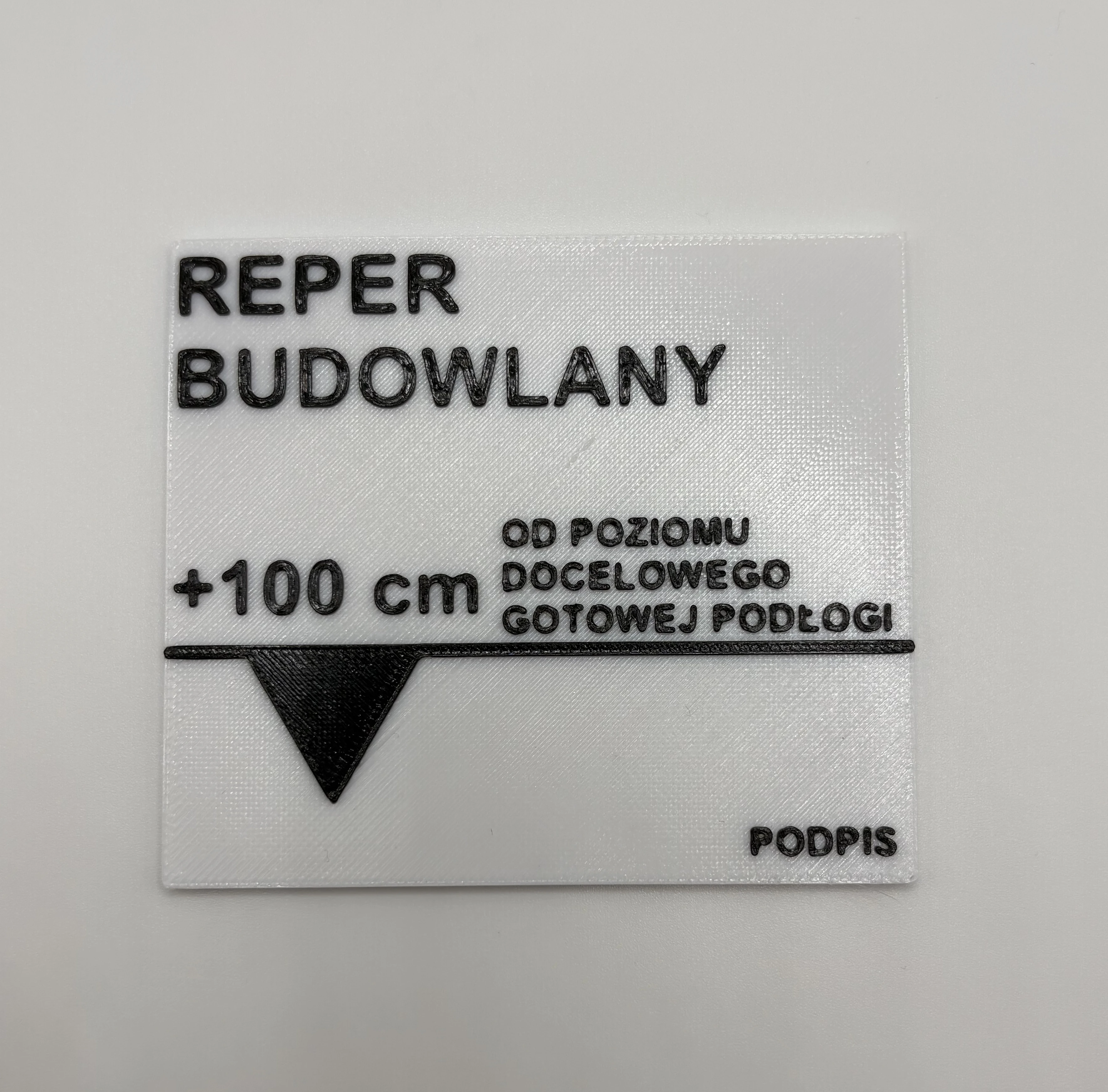

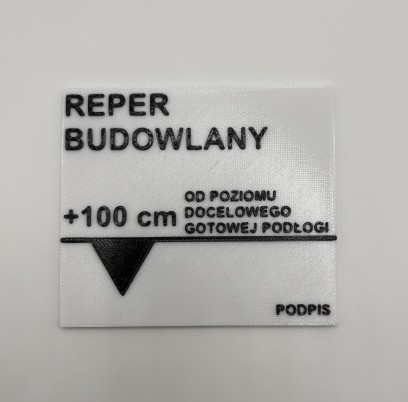

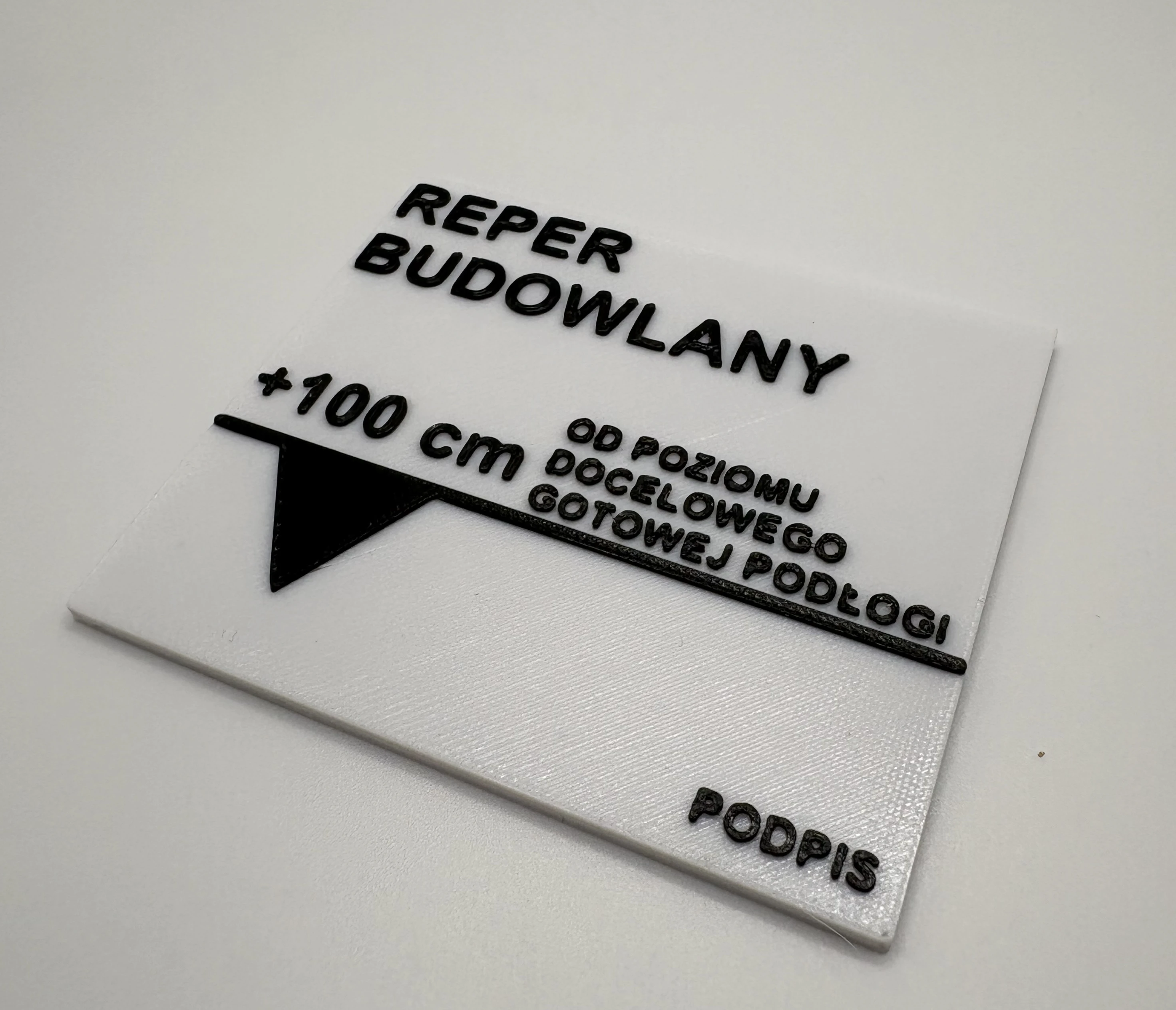

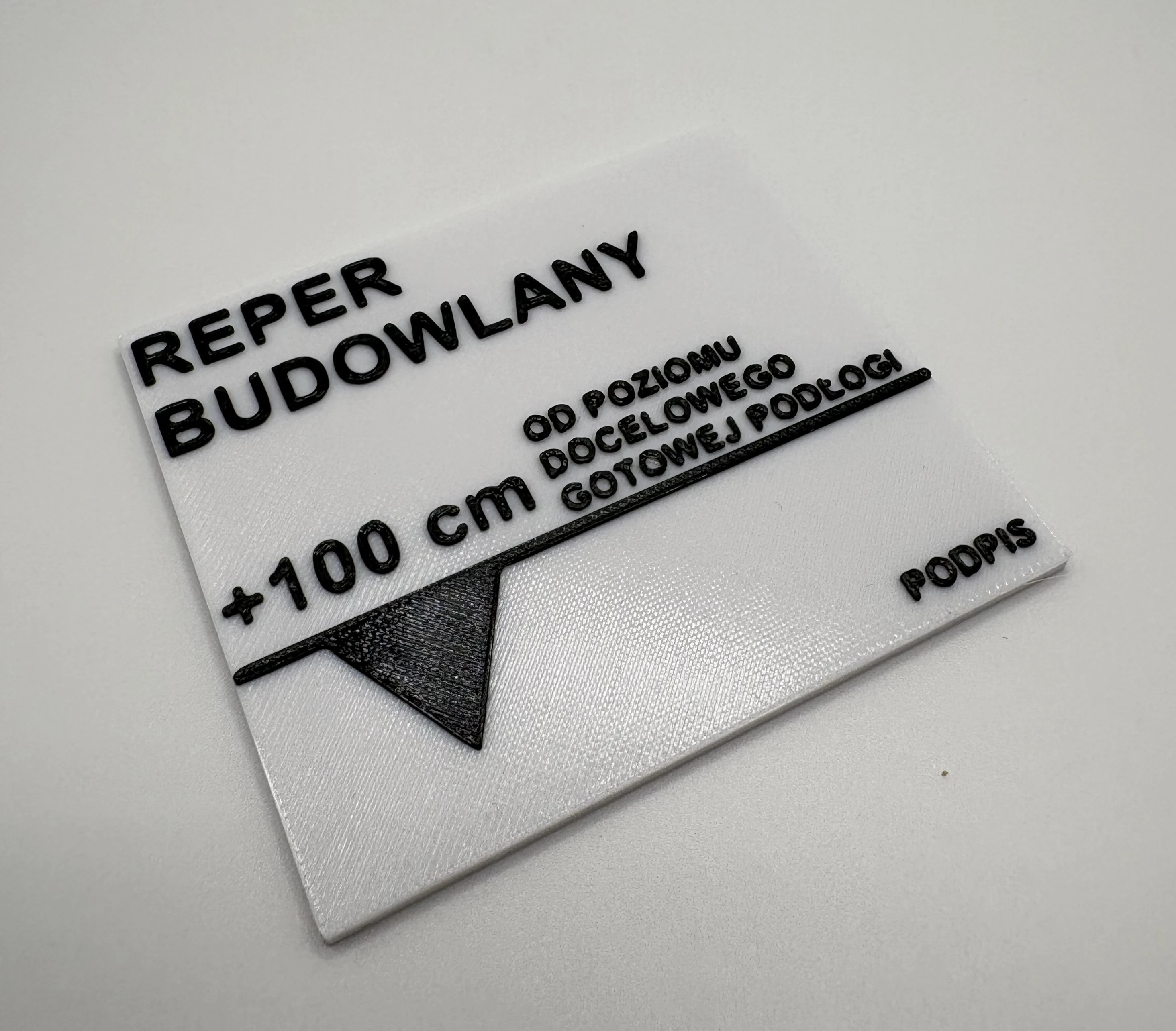

Construction Datum Marker / Benchmark Plate 80 x 70 x 3 mm
Product code: 5E37-5212C
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Ask about the product
Administratorem danych osobowych jest simplymade. Piotr Białek. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Precision Height Reference Marker – Construction Datum Plate 80 × 70 × 3 mm
The Construction Datum Marker is a specialized benchmark plate used to precisely establish the final finished floor level (the "zero point") during building construction and renovation. Serving as an essential height reference datum, it provides a solid baseline for structural planning, window/door installation, and utility fitting. Mounting it in a clearly visible location prevents costly measurement errors and disputes among contractors.
Key advantages of using this benchmark marker:
- Reduces time spent on repetitive height checks and corrections,
- Prevents unexpected expenses resulting from elevation mistakes,
- Enables clear monitoring of construction progress across all phases,
- Ensures full compliance with building site standards and documentation regulations.
Target Applications and Industries
This benchmark marker is an indispensable tool for both newly constructed buildings and extensive renovations. It is tailored for:
- Window and door joinery installers/suppliers – simplifies determining correct window, door, and threshold heights relative to the finished floor,
- Property investors & client reps – allows easy verification of site elevations at any execution stage,
- Site managers and general contractors,
- Electrical installation teams,
- Custom furniture and cabinetry makers,
- Plumbing and HVAC contractors,
- Finishing crews involved in the construction project.
Installation Guidelines
- The target finished floor elevation (zero point) is determined jointly with the investor and site manager.
- The marker is mounted at the building entrance and near selected balcony/patio doors, positioned precisely 100 cm above the agreed zero level.
- Height uniformity must be verified across all building levels before permanently securing the plate to the wall.
- The marker must not be removed during subsequent construction stages.
- Ultimately, the plate remains in place permanently, covered by plaster and painted along with the wall.
Professional Standards and Compliance
Using a standardized construction datum marker demonstrates the high professionalism and thoroughness of a contractor or manufacturer. Providing a permanent, clear elevation reference ensures that all trades work from the same baseline, keeping the project organized, compliant with site log requirements, and free from costly elevation discrepancies.
Custom branded versions featuring your company logo are also available to serve as promotional material on site. Pricing for custom logo variants is determined individually.
Technical Specifications:
- Dimensions: 80 × 70 × 3 mm
- Product Type: Construction Datum Marker / Benchmark Plate
- Application: Establishing finished floor level (+100 cm reference point)
- Key Benefits: Eliminates elevation errors, permanent site reference, professional finish.
